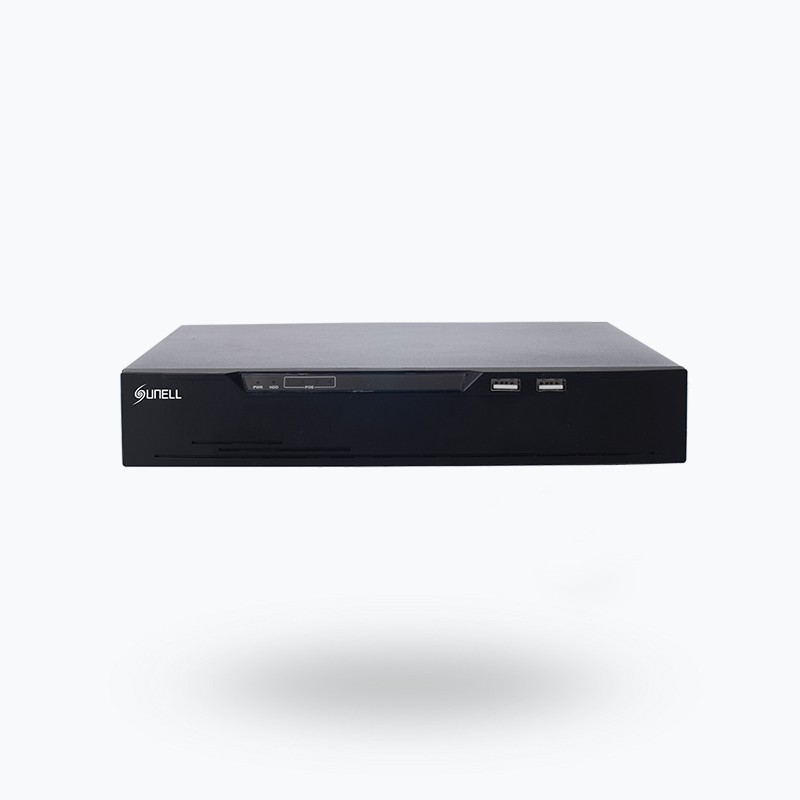

SN-NVR2508E2-P8
8CH 2HDD NVR with 8CH POE
Key features
- Up to 8ch IP cameras access
- Easy to use Same Interface of GUI/WEB/Client
- 2 SATA hard disk each up to 8TB
- 1RJ45 10M/100M network interface
- 8ch POE Ports
- Simultaneous HD-OUT&VGA ,up to 4K output
- 2 x 2.0 USB Host
- 8ch Alarm Input,1ch Alarm output
- 1ch Audio I/O
pecifications
|
VIDEO/AUDIO INPUT |
|
| Video Input | 8ch h.265/h.264 |
| Incoming Bandwidth | 56Mbps ,(main stream 48Mbps ,sub stream 8Mbps) |
| Outgoing Bandwidth | 64Mbps |
| Audio Input | G711_A/G711_U |
| VIDEO/AUDIO OUTPUT | |
| Live View/Playback/ Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1/VGA/CIF/QCIF |
| Frame Rate | 8MP/6MP/5MP/4MP/3MP/1080P@30fps; |
| Live View/Playback Capacity | Live View 8ch 720P/4ch 1080P/1ch 8MP @30fps
Playback 8ch 720P/4ch 1080P/1ch 8MP |
| HDMI/VGA Output | HD-OUT : 3840×2160/60Hz,1920×1080/60Hz,1440×900/60Hz,1280×1024/60Hz
VGA :1920×1080/60Hz,1280×720/60Hz,1024×768/60Hz |
| Audio Output | 1ch,Line out |
| HARD DISK | |
| SATA HDD | 2 SATA interface for 2HDD |
| Mounting Mode | Embedded |
| Capacity | Up to 8TB for each disk |
| NETWORK | |
| Network Interface | 1 RJ45 10M/100M |
| Protocol | RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,NTP, RTSP |
| POE Interface | 8ch 100Mbps,IEEE802.3af |
| POE Max Power | 80W |
| INTERFACE | |
| HDMI/VGA | 1ch HD-OUT, 1ch VGA |
| USB | USB 2.0 x2 |
| Audio I/O | 1ch MIC in,1ch audio line out |
| Alarm I/O | 8ch Alarm input ,1ch Alarm output |
| Reset Button | N/A |
| GENERAL | |
| Power Supply | AC110-220V |
| Power Consumption | <5W (without HDD) |
| Operating Temperature | -10°C ~ 45°C (14°F ~ 113°F ) |
| Operating Humidity | 0% – 90% RH |
| Chassis | 1U |
| Product Dimensions | 372×311×44.5mm |
| Product Weight | 2.1kg |
Dimension
Interface Introduction
